Z-Directional Polymeric Glass Transition Dynamics and Caliper Yield Models in Thermally Conditioned Boxboard Finishing

Matrix

Multi-ply boxboard construction relies on controlled spatial deposition of chemical species across the sheet thickness. Natural wood polymers, synthetic binders, and starch adhesives occupy localized positions within the furnish hierarchy to deliver distinct mechanical and optical functions. Bleached chemical pulps on the outer plies provide print smoothness and tensile strength, while mechanical or chemithermomechanical pulps in the core provide volumetric bulk and bending stiffness.

Each component possesses a specific thermal transition profile that governs structural behavior under mechanical load.

The glass transition temperature marks the physical threshold where amorphous polymers shift from a rigid, brittle glass state to a flexible, rubbery state. Amorphous cellulose, hemicellulose, native lignin, and synthetic coating binders exhibit distinct transition regions. Native dry lignin exhibits a high glass transition temperature between 130 °C and 150 °C. Hemicellulose demonstrates a lower glass transition threshold, shifting between 80 °C and 100 °C under dry conditions.

Native ungelatinized corn starch undergoes transition between 50 °C and 90 °C depending on moisture content, whereas styrene-butadiene and styrene-acrylate latex binders in top coatings are engineered with transition temperatures ranging from -10 °C to +20 °C to promote room-temperature film formation.

At 23 °C and 50 % relative humidity, ISO 534 measurements confirm that a 5 % moisture increase depresses the lignin glass transition temperature by 45 °C.

Thermal conditioning during board finishing alters the Z-directional polymer morphology. When temperature exceeds the local glass transition threshold, polymeric chains gain molecular mobility. Applied nip pressure forces rubbery polymers into interstitial voids between cellulose microfibrils.

Fibres align along the machine axis. Steam softens the native lignin. This localized molecular realignment permanently alters internal sheet geometry, dictating both finished caliper and density distribution.

Z Axis Polymer Distribution in Folding Boxboard

Concentration gradients of polymers across the board thickness create differential thermal sensitivity. Outer plies carry high concentrations of oxidized starches and synthetic latex binders designed to bind mineral pigments like calcium carbonate and kaolin clay. Middle plies contain higher proportions of residual lignin within mechanical pulp fractions like BCTMP.

This structural distribution creates a non-uniform thermal response during web processing. The outer plies soften rapidly under surface heating, while the middle plies remain thermally insulated unless sufficient residence time is provided.

Internal moisture acts as a plasticizer for natural carbohydrate polymers. Water molecules enter the amorphous regions of cellulose and hemicellulose, breaking inter-molecular hydrogen bonds and increasing molecular free volume. This moisture-induced plasticization depresses the glass transition temperature of cellulosic components significantly.

A middle ply operating at 9 % moisture content achieves polymer mobility at far lower temperatures than a dry top ply operating at 4 % moisture. Managing moisture distribution across individual plies is therefore essential for controlling polymer softening during thermal finishing operations.

Thermal Response of Native Starch and Synthetic Binders

Surface strength and internal bond strength rely heavily on starch gelatinization state and binder migration. Spray-applied starches between plies must reach their activation temperature under sufficient moisture to flow and establish inter-ply bonding. Insufficient heat leaves starch granules ungelatinized, reducing Z-directional tensile strength.

Excess heat drives synthetic binder migration toward the sheet surface, depleting binder concentration at the coating-substrate interface and causing picking during offset printing.

The viscoelastic response of synthetic coating binders under thermal load governs surface compressibility and gloss development. Styrene-butadiene latexes undergo viscoelastic flow in heated calender nips, leveling surface micro-roughness. Styrene-acrylate binders offer higher thermal stability, maintaining surface structure under moderate heat.

Balancing binder selection against expected calender roll surface temperatures ensures smooth surface formation without compromising ink absorption or causing sheet sticking on finishing rolls.

Whether synthetic latex binders in the top liner reach viscoelastic flow fast enough to prevent micro-cracking at high machine speeds remains an open thermodynamic question.

Heat

Thermal energy transfer through paperboard plies follows classical Fourier heat conduction kinetics modified by internal moisture vapor flux. Temperature distribution along the Z-axis depends on contact time, thermal conductivity, thermal diffusivity, and the surface temperature of calender rolls. Calender rolls operating between 120 °C and 200 °C establish steep thermal gradients across the board profile within milliseconds of nip contact.

Z-directional thermal conductivity in paperboard is naturally low due to entrained air within the porous network. Dry paperboard exhibits thermal conductivity values between 0.05 W/m·K and 0.12 W/m·K, compared to water at 0.60 W/m·K and solid cellulose at 0.25 W/m·K. Increasing board density or moisture content raises thermal conductivity, speeding heat transfer into the core plies. Thermal diffusivity dictates how rapidly temperature changes propagate through the sheet thickness, controlling the depth of polymer glass transition during rapid nip transit.

Thermal Gradient Propagation through Symmetrical and Asymmetrical Structures

Asymmetrical heating profiles develop when single-sided thermal calenders apply heat exclusively to the top print liner. Thermal energy flows inward rapidly. The top surface rapidly surpasses its polymer glass transition temperature, consolidating the coating layer and top chemical plies.

The middle and bottom plies remain below their respective transition thresholds, preserving core bulk and maintaining structural stiffness. Asymmetrical thermal application optimizes surface smoothness on the print side while mitigating core compaction.

Symmetrical heating in double-nip thermal calenders drives heat inward from both surfaces simultaneously. The dual heat fronts meet at the center ply, raising the core temperature above the wet lignin glass transition threshold if nip dwell time is sufficiently long. Core polymer softening causes middle-ply collapse, resulting in significant caliper loss.

Web speed, roll temperature, and web moisture must be coordinated to prevent thermal front convergence in the middle ply.

1. Condition the raw board web to a uniform 6.5 % moisture equilibrium across all plies.
2. Pass the substrate through an infrared pre-heating zone to elevate the print boundary temperature to 70 °C.
3. Apply a single-nip thermal contact using a soft roll surface loaded to 150 kN/m at 160 °C.
4. Cool the exiting web rapidly over a chilled cylinder maintained at 18 °C to freeze the surface smoothness.

Moisture Mediated Glass Transition Depression Mechanics

Moisture vapor migration alters Z-directional heat transfer during thermal finishing. Surface heating evaporates water from top plies, creating a vapor pressure gradient that drives moisture toward cooler inner plies. The migrated moisture condenses in the middle core, temporarily increasing core moisture content and lowering local polymer glass transition temperatures.

Cold steel locks the structure. This dynamic moisture transfer causes delayed core softening even when raw core temperatures appear safe under steady-state models.

Controlling web moisture entering the finishing section prevents runaway core compaction. High core moisture depresses the lignin glass transition temperature below 60 °C, making the middle ply sensitive to small thermal fluctuations. Maintaining strict moisture limits across pre-calender dryer groups stabilizes the thermal operating window and protects bulk retention.

Mill engineers frequently state that density spikes in the middle ply originate from unexpected moisture pockets rather than elevated roll surface temperatures.

Creep

Mechanical compression in calender nips causes both elastic strain and permanent plastic flow within the cellulosic web. Elastic strain recovers immediately upon nip exit as mechanical forces unload. Plastic deformation represents permanent Z-directional displacement resulting from polymer chain slipping, lumen collapse, and micro-fibril realignment.

Viscoelastic response falls between these extremes, exhibiting time-dependent recovery governed by web temperature and residual moisture.

Density increases under nip pressure. Bulk drops when temperature rises. Caliper determines bending stiffness.

Permanent thickness loss occurs when compressive forces act on polymers heated above their glass transition temperature. In this rubbery state, polymers deform with low mechanical resistance, allowing web structures to compact under applied nip loads. Rapid cooling post-nip drops the polymer temperature below Tg, freezing the compacted structural orientation permanently.

What Triggers Caliper Loss during Thermal Conditioning?

Caliper yield losses stem directly from middle-ply mechanical compaction during heated calendering. Mechanical pulps like BCTMP rely on intact wood fibre lumens to provide bulk. When middle-ply temperatures exceed the wet lignin glass transition point, lumen structures collapse under pressure.

High mechanical load combined with elevated temperature transforms hollow stiff fibres into flattened ribbons, irreversibly reducing board volume.

• Ply delamination occurs when internal vapor pressure exceeds z-directional tensile strength during rapid thermal expansion within the nip line.
• Caliper collapse happens when the middle ply temperature surpasses the wet lignin glass transition threshold under high nip loads.
• Surface micro-fracturing arises when brittle starch matrices in the top coating exceed maximum allowable tensile strain without plastic deformation.

Controlling mechanical load relative to core temperature prevents catastrophic lumen collapse. Soft-nip calenders utilizing elastomeric roll covers distribute compression over wider nip widths, lowering peak compressive stress. Lower peak stress keeps mechanical core plies in the elastic deformation regime, preserving high bulk while providing high surface smoothness on the print plies.

Permanent Density Changes and Yield Penalties

Density modifications alter the physical relationships that govern paperboard commercial value. Board density correlates inversely with bending stiffness at constant basis weight. Bending stiffness scales proportionally with the third power of caliper according to Euler-Bernoulli beam theory.

Small reductions in finished caliper yield major losses in structural rigidity, forcing converters to increase basis weight to meet pack performance standards.

Unfinished board bulk determines the maximum allowable calendering load before cross-direction thickness variance exceeds five percent.

Irreversible creep behavior under load increases density uniformities, which benefits gravure printing but harms converting performance. High-density board exhibits reduced crease formation latitude, increased score cracking, and reduced die-cutting tool life. Minimizing unnecessary compaction during thermal finishing preserves mechanical performance across packaging lines.

Excessive Z-directional compaction during thermal finishing degrades bending stiffness, forcing converters to purchase higher grammage stock to maintain pack structural integrity.

Spread

Caliper yield equations link machine-direction bulk retention to the commercial sheet count obtained per metric tonne of purchased paperboard. Paperboard raw materials are purchased by weight but deployed in converting by surface area and caliper. Optimizing caliper retention allows mills to manufacture lower basis weight sheets that match the structural performance of heavier, unconditioned boards.

Yield dictates total pack cost. Stiffness scales with the third power. High pressure compacts the middle layer.

Mathematical yield models incorporate thermal conditioning parameters to predict final substrate caliper. Consider a packaging line requiring 400 μm board caliper to maintain carton column crush strength. Traditional unheated calendering compacts a 300 g/m² furnish to achieve the target surface roughness of 1.5 μm Parker Print-Surf, reducing caliper to 360 μm.

The converter must increase basis weight to 335 g/m² to maintain the required 400 μm caliper.

Caliper Yield Mathematics under Heated Nips

Heated soft-nip calendering changes this financial dynamic. Applying heat at 160 °C directly to the top coating plies softens surface polymers rapidly, achieving the 1.5 μm Parker Print-Surf roughness target at reduced nip pressure. Lower nip pressure prevents middle-ply lumen collapse.

The 300 g/m² furnish retains 395 μm caliper post-finishing. Matching the required 400 μm caliper requires a furnish of only 304 g/m².

Consider a 50-tonne packaging lot order priced at €1,400 per metric tonne. Unheated stock produces 149,250 square meters of board at 335 g/m². Thermally conditioned stock produces 164,473 square meters of board at 304 g/m² for the same tonnage investment.

This yield differential delivers 15,223 additional square meters of substrate, equivalent to a 10.2 % increase in usable packaging blank output without structural performance penalties.

Compliance with ISO 1924-2 tensile standards mandates that thermal conditioning must not reduce cross-direction strain-at-break below 1.8 percent.

Substrate Thickness Tolerances and Converter Performance

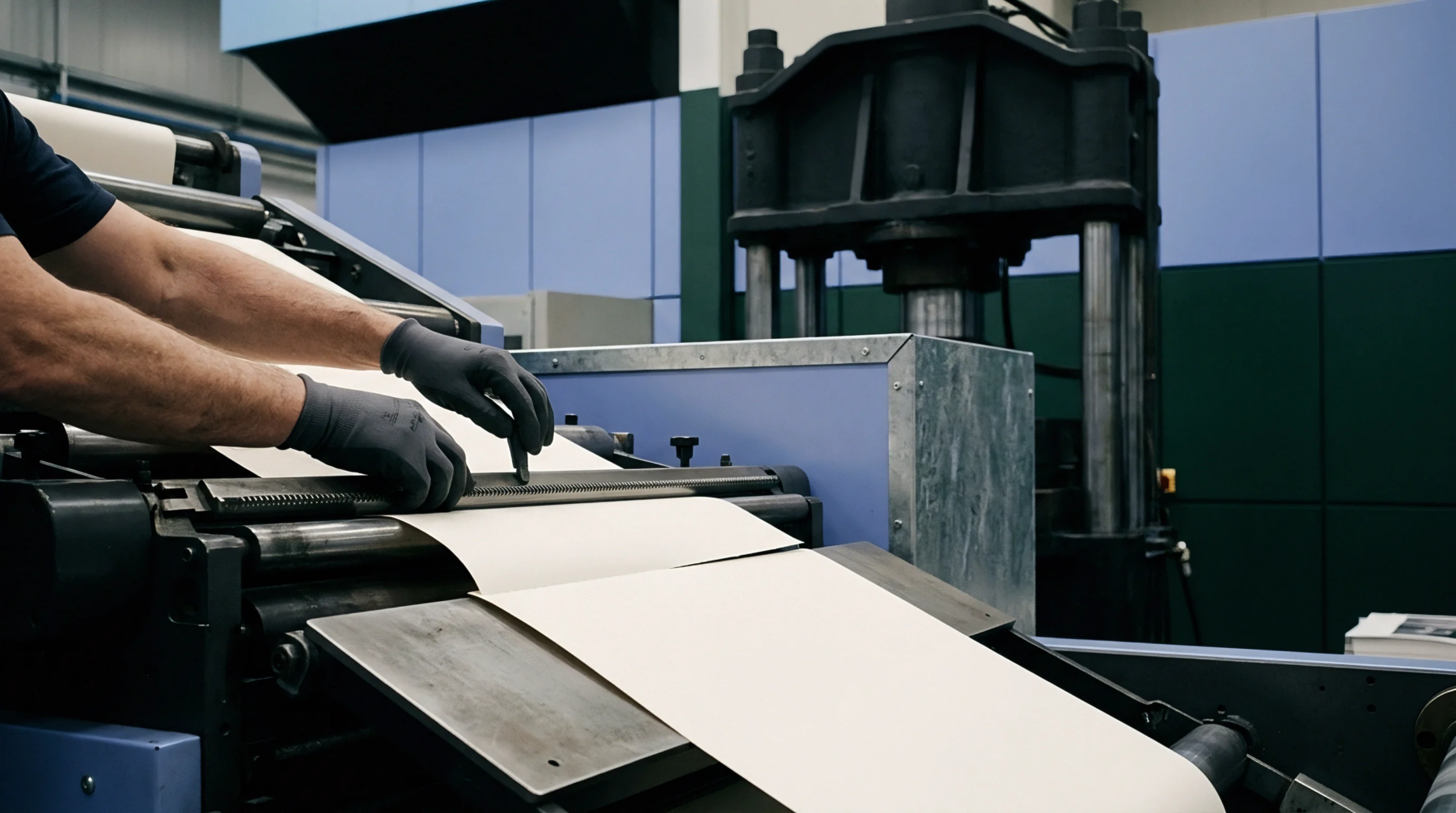

Cross-web caliper profiles must remain within narrow operational bands to prevent running errors on high-speed folding carton lines. Localized temperature variations on calender roll surfaces induce cross-direction density fluctuations. Hot spots on rolls cause localized caliper drop, creating loose streaks in parent rolls that lead to web misalignment, printing register errors, and uneven glue application during carton assembly.

• Target bulk specification establishes the allowable range for nip pressure based on finished pack creasing performance.
• Surface roughness threshold determines the minimum thermal nip temperature required to achieve specified gravure or offset print gloss.
• Moisture profile tolerance dictates the maximum web speed permitted without causing dynamic steam blisters during high-temperature transit.

Specifying narrow caliper tolerance bands protects high-speed converting machinery. Caliper variations across delivered rolls alter crease depth settings on die-cutters, causing inconsistent carton opening force. Utilizing thermal conditioning systems equipped with zonal induction heating controls roll temperature profiles across the web width, maintaining caliper variation within a strict plus or minus 2.5 % band.

Standard supply contracts executing under DIN 53121 specify that caliper variations across delivered rolls exceeding plus or minus three percent entitle the buyer to a four percent price adjustment on the affected tonnage.

Ledger

Commercial substrate purchasing mandates strict alignment between mill conditioning protocols and converting floor performance requirements. Procurement specifications must account for thermal processing parameters alongside traditional metrics like basis weight, tensile strength, and brightness. Explicit targets for Z-directional thermal response ensure delivered stock retains structural integrity through printing, folding, and gluing operations.

Polymer chains relax under heat. Sizing migrates toward the outer surface. Specifying substrate requirements solely by basis weight leaves converting operations exposed to density variations.

Mill suppliers can achieve target basis weights using high-density, heavily compacted furnishes that fail to deliver required carton stiffness. Specifications must establish minimum allowable caliper and minimum bulk thresholds alongside maximum surface roughness limits.

Substrate yield gains realized at the paper machine disappear when unconditioned converting warehouses allow moisture absorption to swell finished board caliper.

Commercial Specification Bounds for Thermally Processed Stock

Supply agreements require comprehensive clauses governing thermal conditioning standards. Mill technical dossiers must state calender roll surface temperatures, nip dwell times, and web moisture levels utilized during substrate finishing. Buyers must establish technical audits checking delivered board properties against laboratory-conditioned base samples to detect undisclosed grade substitutions or process changes.

Acceptance testing procedures at goods-in must verify Z-directional properties immediately upon roll unrolling. Measuring board caliper under ISO 534 standard conditions within thirty minutes of roll opening prevents unallocated claims regarding post-delivery moisture uptake. Deliveries exceeding specified caliper tolerances require immediate commercial re-evaluation or batch rejection before press room loading.

Financial Implications of Substrate Downgauging

Optimizing substrate bulk through thermal finishing enables commercial downgauging programs. Shifting from a 350 g/m² standard chipboard to a 310 g/m² thermally conditioned folding boxboard reduces total raw material tonnage requirements while maintaining identical carton stackability. Freight savings accrue across the supply chain, as lower basis weight board increases unit packaging count per shipment pallet.

Extended converter trials must confirm downgauged substrate performance before full commercial transition. Testing must validate creasing behavior, glue adhesion speeds, and line efficiency across variable ambient packaging environments. Quantifying total landed cost per thousand finished cartons provides the definitive metric for evaluating thermal substrate optimization projects.

A ten percent retention in middle-ply bulk yields a predictable seven percent reduction in required paperboard grammage for folding carton applications.
